Implement a custom homotopy

How to set up a custom homotopy

This guide explains how to implement a homotopy of the form $$H(x,t).$$ In HomotopyContinuation.jl a homotopy is a struct for which one must implement a few (in-place) functions, namely

ModelKit.evaluate!
ModelKit.evaluate_and_jacobian!
ModelKit.taylor!

As the names suggest, these functions

  • evaluate $H(x,t)$ at $(x,t)$,
  • evaluate $H(x,t)$ and compute the jacobian at $(x,t)$, and
  • compute the taylor expansion of $H(x,t)$ with respect to $t$ at $(x,t)$.

In fact, $H(x,t)$ does not even need to be a polynomial function, neither in $x$ nor $t$. The algorithm only depends the implementation of these three functions and tracks $t$ from $t=1$ to $t=0$.

Implementing an example homotopy

Let us illustrate how this works in an example. We want to implement a homotopy that, given systems of polynomials $F(x)$ and $G(x)$, is given by

$$H(x,t) = \gamma\cdot \sin(t\cdot \pi/2)\cdot G(x) + \cos(t\cdot \pi/2) \cdot F(x), \quad 0\leq t\leq 1,$$

where $\gamma \in\mathbb C$.

In this case, we have $H(x,1)=G(x)$ and $H(x,0)=F(x)$. That is, $G(x)$ is our start system and $F(x)$ our target system.

This is similar to a straight line homotopy $H(x,t) = \gamma \cdot t \cdot G(x) + (1-t)\cdot F(x)$. We copy the code for a StraightLineHomotopy, adapt it to our setting and call the result TrigonometricHomotopy.

In the following, we explain some of the implemented functions, but not all. The complete code is at the end of this guide.

The struct that defines our TrigonometricHomotopy could look like this:

using HomotopyContinuation

struct TrigonometricHomotopy{S<:AbstractSystem, T<:AbstractSystem} <: AbstractHomotopy
    start::S
    target::T
    γ::ComplexF64
    half_pi::Float64

    u::Vector{ComplexF64}
    ū::Vector{ComplexF64}
    v̄::Vector{ComplexF64}
    U::Matrix{ComplexF64}

    dv_start::TaylorVector{5,ComplexF64}
    dv_target::TaylorVector{5,ComplexF64}
end

Here, start and target are start and target system, respectively. We also save $\pi/24 in half_pi so that we don't need to compute it all the time. The remaining entries are for caching.

The evaluate! function comes next:

function ModelKit.evaluate!(
    u,
    H::TrigonometricHomotopy,
    x::Vector{ComplexF64},
    t,
    p = nothing,
)
    evaluate!(H., H.start, x)
    evaluate!(H., H.target, x)

    t0 = H.half_pi * t
    ts, tt = H.γ .* sin(t0), cos(t0)
    for i = 1:size(H, 1)
        @inbounds u[i] = ts * H.[i] + tt * H.[i]
    end
end

Here, ts and tt are the coefficients at $t$ of $G$ and $F$, respectively. Notice that the coefficient of $G$ is indeed $\gamma \cdot \sin(t \cdot \pi/2)$ and the coefficient of $F$ is $\cos(t \cdot \pi/2)$.

The evaluate_and_jacobian! is similar, but includes the Jacobian:

function ModelKit.evaluate_and_jacobian!(
    u,
    U,
    H::TrigonometricHomotopy,
    x::AbstractVector{T},
    t,
    p = nothing,
) where {T}
    evaluate_and_jacobian!(u, U, H.start, x)
    evaluate_and_jacobian!(H.u, H.U, H.target, x)

    t0 = H.half_pi * t
    ts, tt = H.γ .* sin(t0), cos(t0)
    for i = 1:size(H, 1)
        @inbounds u[i] = ts * u[i] + tt * H.u[i]
    end
    for j = 1:size(H, 2), i = 1:size(H, 1)
        @inbounds U[i, j] = ts * U[i, j] + tt * H.U[i, j]
    end
    nothing
end

Finally, we implement ModelKit.taylor!:

function ModelKit.taylor!(u, ::Val{1}, H::TrigonometricHomotopy, x, t)
    evaluate!(u, H.start, x)
    evaluate!(H.u, H.target, x)

    t0 = H.half_pi * t
    ts, tt = H.γ * cos(t0) * H.half_pi, -sin(t0) * H.half_pi
    for i = 1:size(H, 1)
        @inbounds u[i] = ts * u[i] + tt * H.u[i]
    end
    u
end

Here, the coefficients are given by differentiating $\gamma \sin(t\cdot \pi/2)$ and $\cos(t\cdot \pi/2)$ at $t$. The input ::Val{1} indicated that this function returns the first derivative with respect to $t$. We also have to implement higher order derivatives (see the complete code at the end of this guide).

Running our custom homotopy

Let us use our homotopy on the following data:

$$G(x) = \begin{pmatrix} x^2 - 1\\ y^2 - 1\end{pmatrix}, \quad F(x) = \begin{pmatrix} y^2 + xy + 1\\ -x^2 + x + 2y - 2\end{pmatrix}$$

choosing $\gamma\in\mathbb C$ at random.

@var x y
G = System([x^2 - 1; y^2 - 1])
F = System([y^2 + x * y + 1; -x^2 + x + 2y - 2])

γ = exp(rand() * 2 * pi * im)
H = TrigonometricHomotopy(G, F; γ = γ)

Now, H is a TrigonometricHomotopy and we can track the zeros of $G$ from $t=1$ to $t=0$ along this homotopy.

julia> starts = [[1,1], [1,-1], [-1,1], [-1,-1]]
julia> S = solve(H, starts)
 Result with 4 solutions
======================= 4 paths tracked 4 non-singular solutions (0 real)
• random_seed: nothing

The computation was successful and all $4$ zeros of $F$ were computed!

Comparing with a straight line homotopy

Let us compare our newly implemented homotopy with a StraightLineHomotopy.

H_SL = StraightLineHomotopy(G, F; γ = γ)

We wish to plot every single point tracked along the way. For this, we can use the following code:

T = Tracker(H)
T_SL = Tracker(H_SL)

pts = Vector{ComplexF64}()
for (x, t) in iterator(T, starts[1], 1.0, 0.0)
    push!(pts, x[1])
end

pts_SL = Vector{ComplexF64}()
for (x, t) in iterator(T_SL, starts[1], 1.0, 0.0)
    push!(pts_SL, x[1])
end

Now, pts contains the list of points tracked along our TrigonometricHomotopy when starting at starts[1] = [1,1]. Similarly, pts_SL contains the points tracked along a StraightLineHomotopy.

We plot the result:

using Plots

scatter(real(pts), imag(pts), markercolor = :steelblue, markersize = 10, legend = false)
scatter!(real(pts_SL), imag(pts_SL), markercolor = :indianred, markersize = 10)
for i in 2:length(pts)
    v = pts[i] - pts[i-1]
    a = pts[i-1:i] + [0.25 .* v; -0.25 .* v]
    plot!(real(a) ,  imag(a) , linecolor = :black, linewidth = 2, arrow=true, opacity = 0.75)
end
plot!()

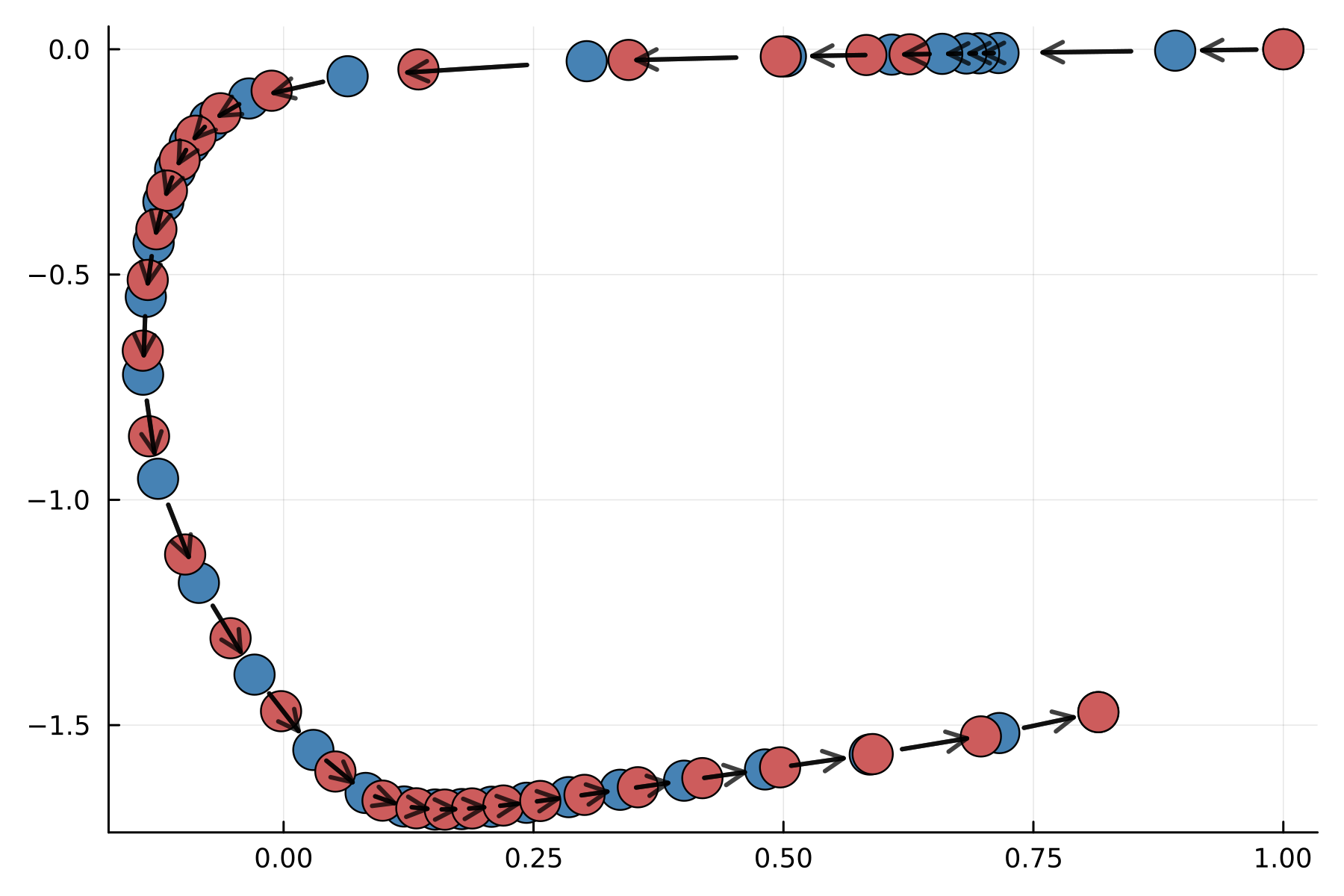

The blue points have been tracked by our TrigonometricHomotopy while the red points have been tracked by the StraightLineHomotopy. As we can see, both homotopies start and arrive at the same point, but the intermediate points are different.

The complete code for our example

struct TrigonometricHomotopy{S<:AbstractSystem, T<:AbstractSystem} <: AbstractHomotopy
    start::S
    target::T
    γ::ComplexF64
    half_pi::Float64

    u::Vector{ComplexF64}
    ū::Vector{ComplexF64}
    v̄::Vector{ComplexF64}
    U::Matrix{ComplexF64}

    dv_start::TaylorVector{5,ComplexF64}
    dv_target::TaylorVector{5,ComplexF64}
end

function TrigonometricHomotopy(
    start::System,
    target::System;
    kwargs...,
)
    TrigonometricHomotopy(
        fixed(start),
        fixed(target);
        kwargs...,
    )
end
function TrigonometricHomotopy(
    start::AbstractSystem,
    target::AbstractSystem;
    γ = 1.0,
    gamma = γ,
)
    size(start) == size(target) || throw(
        ArgumentError(
            "Start and target do not have the same size, got $(size(start)) and $(size(target))",
        ),
    )

    m, n = size(start)
    u = zeros(ComplexF64, m)
    ū = zeros(ComplexF64, m)
    v̄ = zeros(ComplexF64, m)
    U = zeros(ComplexF64, m, n)
    half_pi = π / 2

    dv_start = TaylorVector{5}(ComplexF64, m)
    dv_target = TaylorVector{5}(ComplexF64, m)

    TrigonometricHomotopy(
        start,
        target,
        ComplexF64(gamma),
        half_pi,
        u,
        ū,
        v̄,
        U,
        dv_start,
        dv_target,
    )
end

Base.size(H::TrigonometricHomotopy) = size(H.start)

function Base.show(io::IO, mime::MIME"text/plain", H::TrigonometricHomotopy)
    println(io, typeof(H), ":")
    println(io, "γ: ", H.γ)
    println(io, "\nG: ")
    show(io, mime, H.start)
    println(io, "\n\nF:")
    show(io, mime, H.target)
end

function ModelKit.evaluate!(
    u,
    H::TrigonometricHomotopy,
    x::Vector{ComplexF64},
    t,
    p = nothing,
)
    evaluate!(H., H.start, x)
    evaluate!(H., H.target, x)

    t0 = H.half_pi * t
    ts, tt = H.γ .* sin(t0), cos(t0)
    for i = 1:size(H, 1)
        @inbounds u[i] = ts * H.[i] + tt * H.[i]
    end
end

function ModelKit.evaluate!(u, H::TrigonometricHomotopy, x, t, p = nothing)
    evaluate!(u, H.start, x)
    evaluate!(H.u, H.target, x)

    t0 = H.half_pi * t
    ts, tt = H.γ .* sin(t0), cos(t0)
    for i = 1:size(H, 1)
        @inbounds u[i] = ts * u[i] + tt * H.u[i]
    end
    u
end

function ModelKit.evaluate_and_jacobian!(
    u,
    U,
    H::TrigonometricHomotopy,
    x::AbstractVector{T},
    t,
    p = nothing,
) where {T}
    evaluate_and_jacobian!(u, U, H.start, x)
    evaluate_and_jacobian!(H.u, H.U, H.target, x)

    t0 = H.half_pi * t
    ts, tt = H.γ .* sin(t0), cos(t0)
    for i = 1:size(H, 1)
        @inbounds u[i] = ts * u[i] + tt * H.u[i]
    end
    for j = 1:size(H, 2), i = 1:size(H, 1)
        @inbounds U[i, j] = ts * U[i, j] + tt * H.U[i, j]
    end
    nothing
end

function ModelKit.taylor!(u, ::Val{1}, H::TrigonometricHomotopy, x, t)
    evaluate!(u, H.start, x)
    evaluate!(H.u, H.target, x)

    t0 = H.half_pi * t
    ts, tt = H.γ * cos(t0) * H.half_pi, -sin(t0) * H.half_pi
    for i = 1:size(H, 1)
        @inbounds u[i] = ts * u[i] + tt * H.u[i]
    end
    u
end

function ModelKit.taylor!(
    u,
    v::Val{K},
    H::TrigonometricHomotopy,
    tx::TaylorVector,
    t,
) where {K}
    taylor!(H.dv_start, v, H.start, tx)
    taylor!(H.dv_target, v, H.target, tx)

    t0 = H.half_pi * t
    for i = 1:size(H, 1)
        start = H.γ * (cos(t0) * H.half_pi * H.dv_start[i, K] + sin(t0) * H.dv_start[i, K+1])
        target = cos(t0) * H.dv_target[i, K+1] - sin(t0) * H.half_pi * H.dv_target[i, K]
        u[i] = start + target
    end
    u
end
